This guide describes how to front the Thoras dashboard with oauth2-proxy so that users must authenticate against Azure Entra ID (formerly Azure AD) before reaching the dashboard.

​
How it works

oauth2-proxy runs as a sidecar container next to the Thoras dashboard container. Traffic hits oauth2-proxy first; it handles the OIDC login flow against Entra, then reverse-proxies authenticated requests to the dashboard’s local port.
User -> oauth2-proxy (:4180) -> Entra OIDC login -> Thoras Dashboard (:8080)

​
Setup

​
1. Register an app in Azure Entra

  1. In the Azure Portal, go to Entra ID -> App registrations -> New registration.
  2. Set a Redirect URI of type “Web”: https://thoras.yourcompany.com/oauth2/callback.
  3. Note the Application (client) ID and Directory (tenant) ID. You’ll need both.
  4. Under Certificates & secrets, create a new client secret and copy its value immediately (it’s only shown once).
  5. Under API permissions, ensure openid, email, and profile delegated permissions are present (these are granted by default for most app registrations).

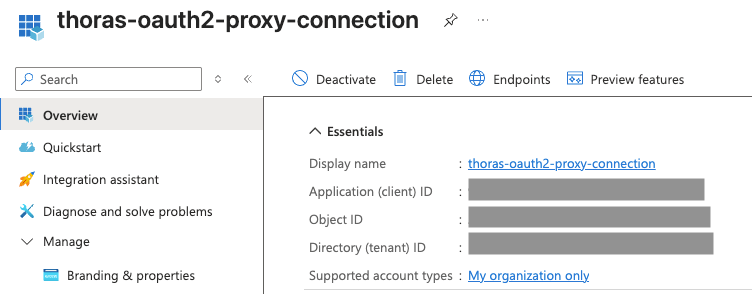

azure-app-registration See oauth2-proxy’s own walkthrough of this same registration process: Microsoft Entra ID provider config.

​
2. Create the Kubernetes secret

oauth2-proxy needs three secrets, referenced via secretKeyRef rather than inlined in values.yaml:
KeyPurpose
client-idThe Entra application (client) ID
client-secretThe Entra client secret
cookie-secretA random value oauth2-proxy uses to encrypt its session cookie
Generate the cookie secret with:
openssl rand -base64 32 | head -c 32 | base64
Create the secret (values below are base64-encoded automatically by kubectl when using --from-literal):
kubectl create secret generic oauth2-proxy-secrets \
  --namespace thoras \
  --from-literal=client-id="<your-client-id>" \
  --from-literal=client-secret="<your-client-secret>" \
  --from-literal=cookie-secret="$(openssl rand -base64 32 | head -c 32 | base64)"

​
3. Configure the oauth2-proxy sidecar in values.yaml

Add an extraContainers entry under thorasDashboard:
thorasDashboard:
  extraContainers:
    - name: oauth2-proxy
      image: quay.io/oauth2-proxy/oauth2-proxy:v7.15.2
      args:
        - --provider=oidc
        - --oidc-issuer-url=https://login.microsoftonline.com/<tenant-id>/v2.0
        - --http-address=0.0.0.0:4180
        - --upstream=http://127.0.0.1:8080
        - --email-domain=yourcompany.com
        - --cookie-secure=true
        - --redirect-url=https://thoras.yourcompany.com/oauth2/callback
        - --skip-provider-button=true
        - --insecure-oidc-allow-unverified-email=false
      ports:
        - name: proxy
          containerPort: 4180
      env:
        - name: OAUTH2_PROXY_CLIENT_ID
          valueFrom:
            secretKeyRef:
              name: oauth2-proxy-secrets
              key: client-id
        - name: OAUTH2_PROXY_CLIENT_SECRET
          valueFrom:
            secretKeyRef:
              name: oauth2-proxy-secrets
              key: client-secret
        - name: OAUTH2_PROXY_COOKIE_SECRET
          valueFrom:
            secretKeyRef:
              name: oauth2-proxy-secrets
              key: cookie-secret
      readinessProbe:
        httpGet:
          path: /ping
          port: 4180
        initialDelaySeconds: 5
        periodSeconds: 10
      resources:
        requests:
          cpu: 25m
          memory: 32Mi
        limits:
          cpu: 100m
          memory: 64Mi

​
Key flags explained

Full flag reference: oauth2-proxy configuration options.
  • --oidc-issuer-url — points to your Entra tenant’s v2.0 OIDC endpoint. Replace <tenant-id> with your Directory (tenant) ID. See the Entra ID provider docs for tenant-specific vs. multi-tenant issuer URL variants.
  • --upstream — the dashboard’s local container port that oauth2-proxy proxies to after successful auth. This stays plain HTTP over loopback (127.0.0.1) because it’s a same-pod, container-to-container hop. TLS belongs on the external-facing side (--cookie-secure, ingress TLS), not here. See upstream configuration.
  • --email-domain=yourcompany.com — restricts login to your org’s email domain(s). Replace with your actual domain, or pass the flag multiple times for more than one domain.
  • --cookie-secure=true — only send the session cookie over HTTPS. Requires the dashboard to actually be served over HTTPS end-to-end (see the ingress note below).
  • --redirect-url=https://thoras.yourcompany.com/oauth2/callback — must be the real external hostname of the dashboard, over HTTPS, and must exactly match a redirect URI registered on the Entra app registration.
  • --skip-provider-button=true — since there’s only one provider (Entra), skip the “choose a provider” landing page and redirect straight to login.

​
4. Deploy and verify

  1. Apply the secret (step 2) and upgrade the Helm release with the updated values.yaml.
  2. Confirm the sidecar comes up healthy:
    kubectl -n thoras get pods -l app=thoras-dashboard
kubectl -n thoras logs <pod> -c oauth2-proxy
  3. Visit the dashboard URL. You should be redirected to Microsoft’s login page, and land back on the dashboard after authenticating.
  4. If the redirect fails or loops, double-check that --redirect-url exactly matches a redirect URI registered on the Entra app, and that --oidc-issuer-url matches your tenant.

​
Exposing the sidecar with a Service and HTTPRoute

To reach oauth2-proxy from outside the cluster, point a Service at its port (4180), not the dashboard’s port (8080), so all external traffic is forced through the auth check.
apiVersion: v1
kind: Service
metadata:
  name: thoras-dashboard-oauth2-proxy
  namespace: thoras
spec:
  selector:
    app: thoras-dashboard
  ports:
    - name: proxy
      port: 80
      targetPort: proxy
Then create an HTTPRoute (Gateway API) that routes the dashboard hostname to that Service, attached to an existing Gateway:
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: thoras-dashboard
  namespace: thoras
spec:
  parentRefs:
    - name: eg
      sectionName: http
  hostnames:
    - thoras.yourcompany.com
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /
      backendRefs:
        - group: ""
          kind: Service
          name: thoras-dashboard-oauth2-proxy
          port: 80
          weight: 1
Adjust parentRefs to match your cluster’s actual Gateway name/namespace, and terminate TLS on the Gateway’s listener (or upstream at a cert-manager-issued Certificate bound to it) rather than on the HTTPRoute. Once DNS for thoras.yourcompany.com resolves to the Gateway and a valid TLS cert is issued, visiting the dashboard URL should trigger the Entra login flow described in step 3 above.

​
